4 in 1 Optical Power meter

4-in-1 Optical Power Meter with VFL & RJ45 Cable Tester

Product Overview

An all-in-one essential tool for fiber optic technicians, network engineers, and installers. This compact 4-in-1 device combines an Optical Power Meter (OPM), Visual Fault Locator (VFL), RJ45 Network Cable Tester, and an LED Torch into a single rugged handheld unit, eliminating the need to carry multiple testing instruments.

Key Features

• 4-in-1 Multi-Functionality: Measures optical power, locates fiber breaks/bends, tests RJ45 ethernet cables, and includes a built-in LED flashlight for low-light environments.

• Wide Wavelength Coverage: Supports all standard optical wavelengths (850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm) for multi-mode and single-mode fiber testing.

• Integrated VFL (Visual Fault Locator): Red laser light with continuous and flashing modes easily detects fiber line breaks, micro-bends, and poor connectors.

• RJ45 Line Sequence Testing: Built-in 8-LED indicators allow instant checking of network cable continuity, wiring order, and pin connections.

• Rechargeable Battery: Powered via a convenient USB charging port, making it lightweight, portable, and long-lasting on the field.

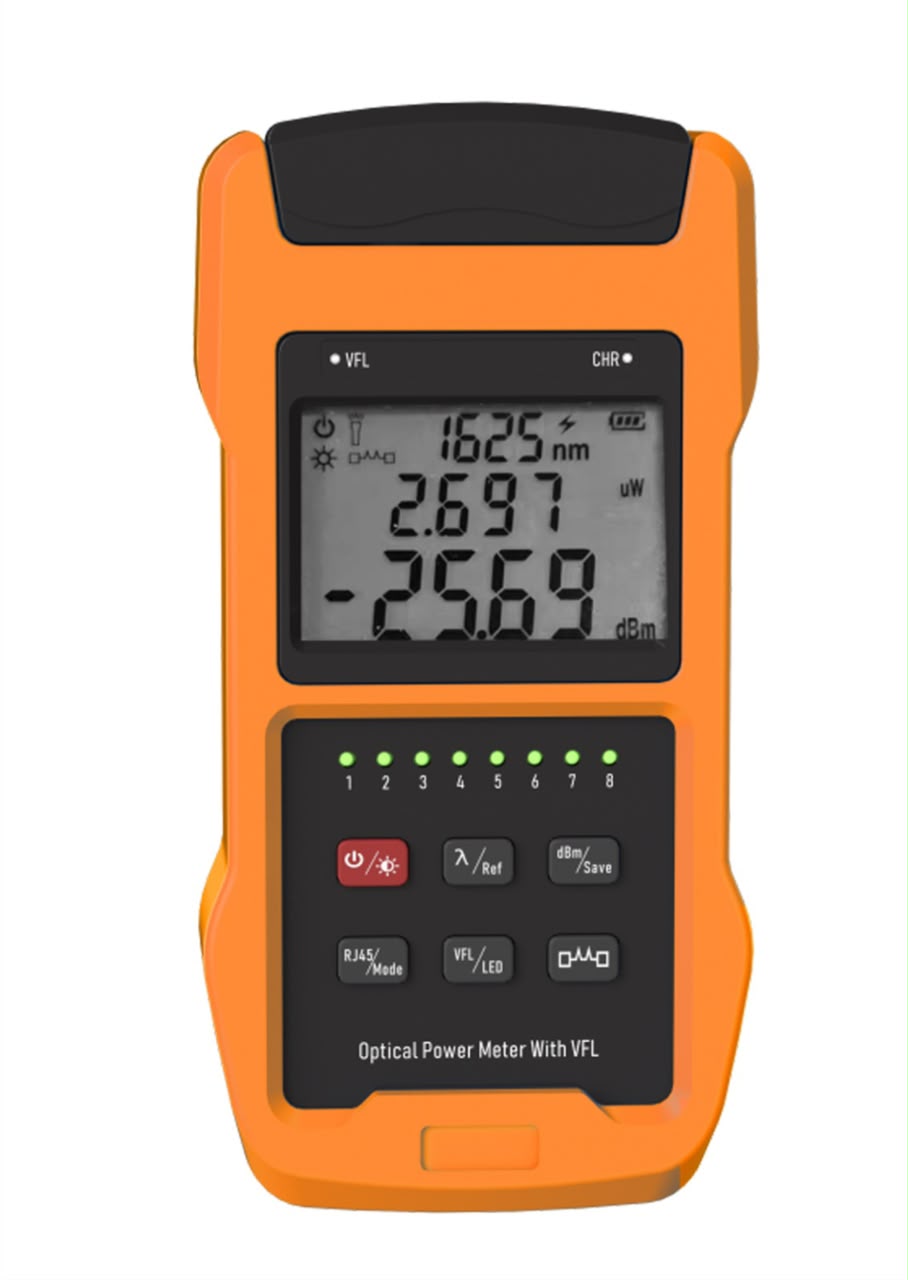

• Clear Backlit LCD Display: High-resolution digital screen displays measurements in dBm, mW, and dB with a blue backlight for clear visibility day or night.

Specifications

• Product Type: Multi-Function Fiber Optic & Network Tester

• Wavelength Range: 850nm – 1625nm

• Functions: OPM + VFL + RJ45 Line Test + LED Torch

• Interface Ports: Universal FC/SC/ST optical connector & RJ45 ethernet port

• Power Supply: Rechargeable lithium battery (USB Type-C/Micro-USB)

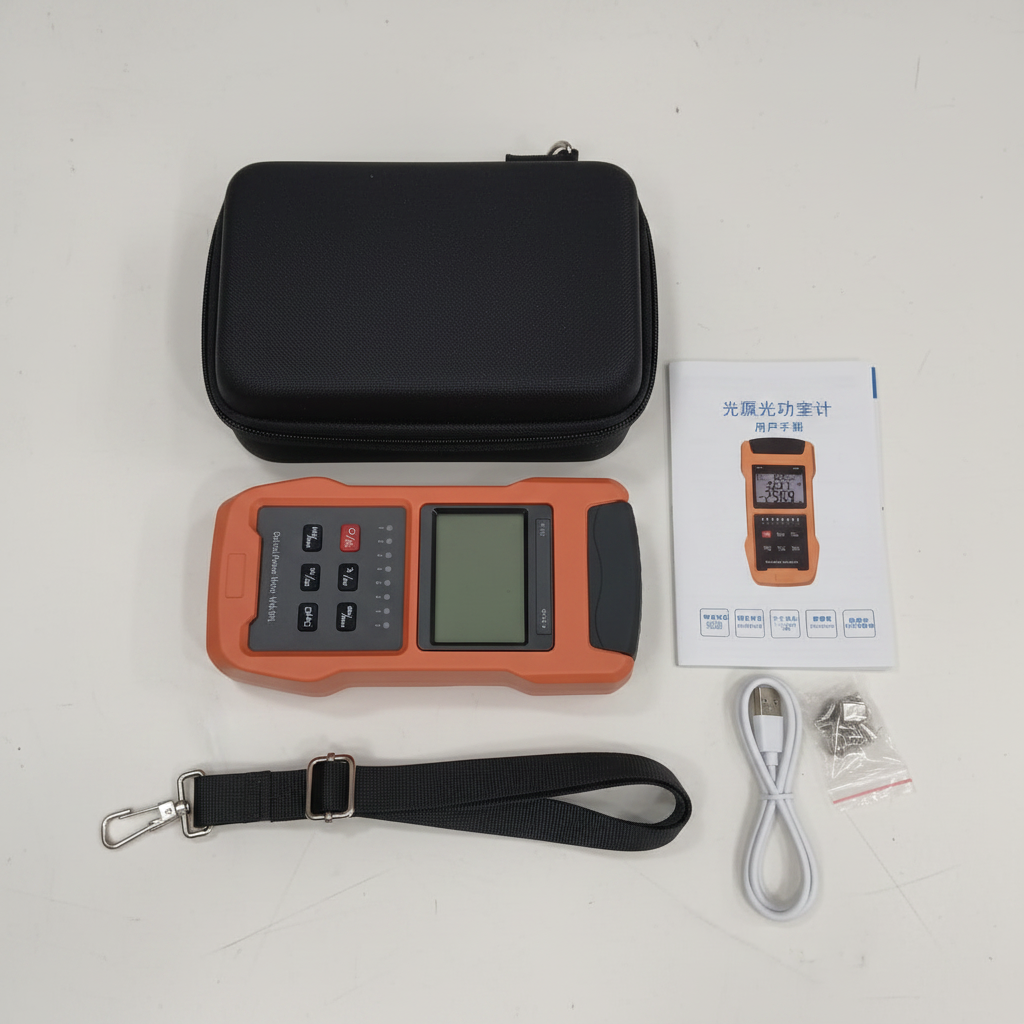

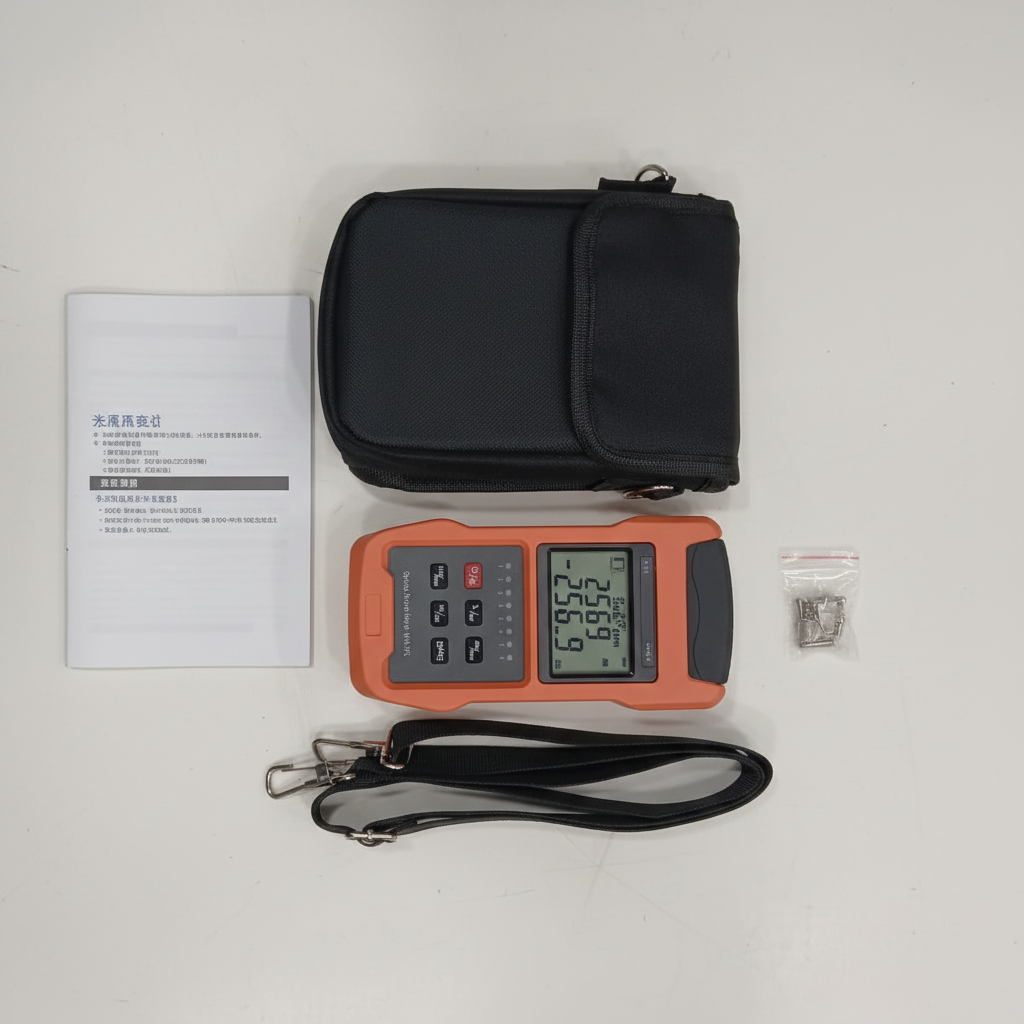

• Package Includes: 1x 4-in-1 Power Meter, 1x Carrying Case, 1x Lanyard Strap, 1x USB Charging Cable, User Manual.
