Blue Optical Power meter

This portable multi-function tester integrates an Optical Power Meter (OPM), a Visual Fault Locator (VFL), and an RJ45 Network Cable Tester into a single rechargeable unit.

Technical Specifications & Features

• 3 Main Functions:

  • Optical Power Meter (OPM): Measures optical signal levels across standard wavelengths ($850\text{ nm}, 1310\text{ nm}, 1490\text{ nm}, 1550\text{ nm}, 1625\text{ nm}$) with a measurement range of -70 dBm to +10 dBm (or -50 dBm to +26 dBm depending on model option).

  • Visual Fault Locator (VFL): Emits a visible red laser light to locate cable breaks, tight bends, or faulty connectors along fiber lines.

  • RJ45 Cable Tester: Tests wire alignment and continuity for standard Ethernet/LAN cables (pin setup 1 through 8).

• Power & Battery: Built-in rechargeable lithium battery charged via the included USB power adapter.

• Interface Ports: Standard universal optical connector interface at the top and an RJ45 port at the bottom.

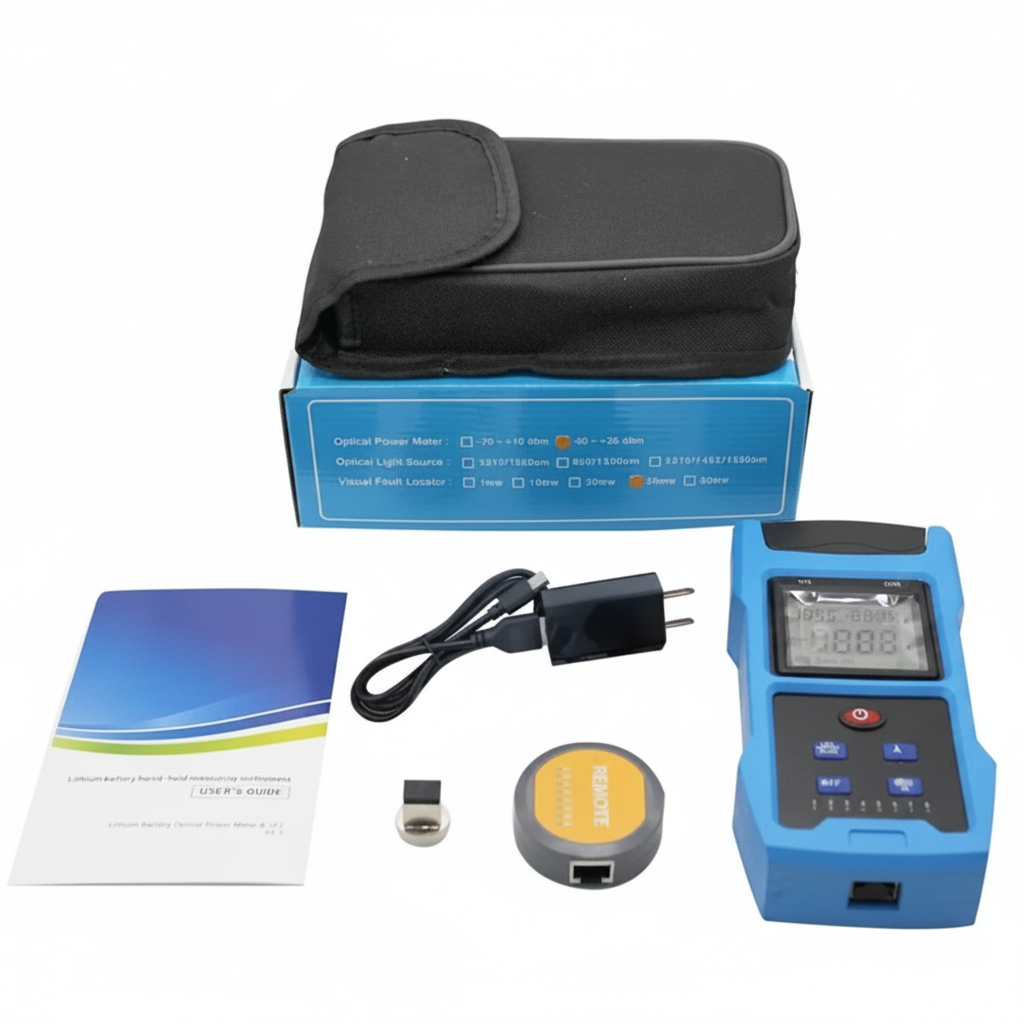

Included Accessories in the Box

1. Main Blue Tester Unit — Handheld main device with LCD display.

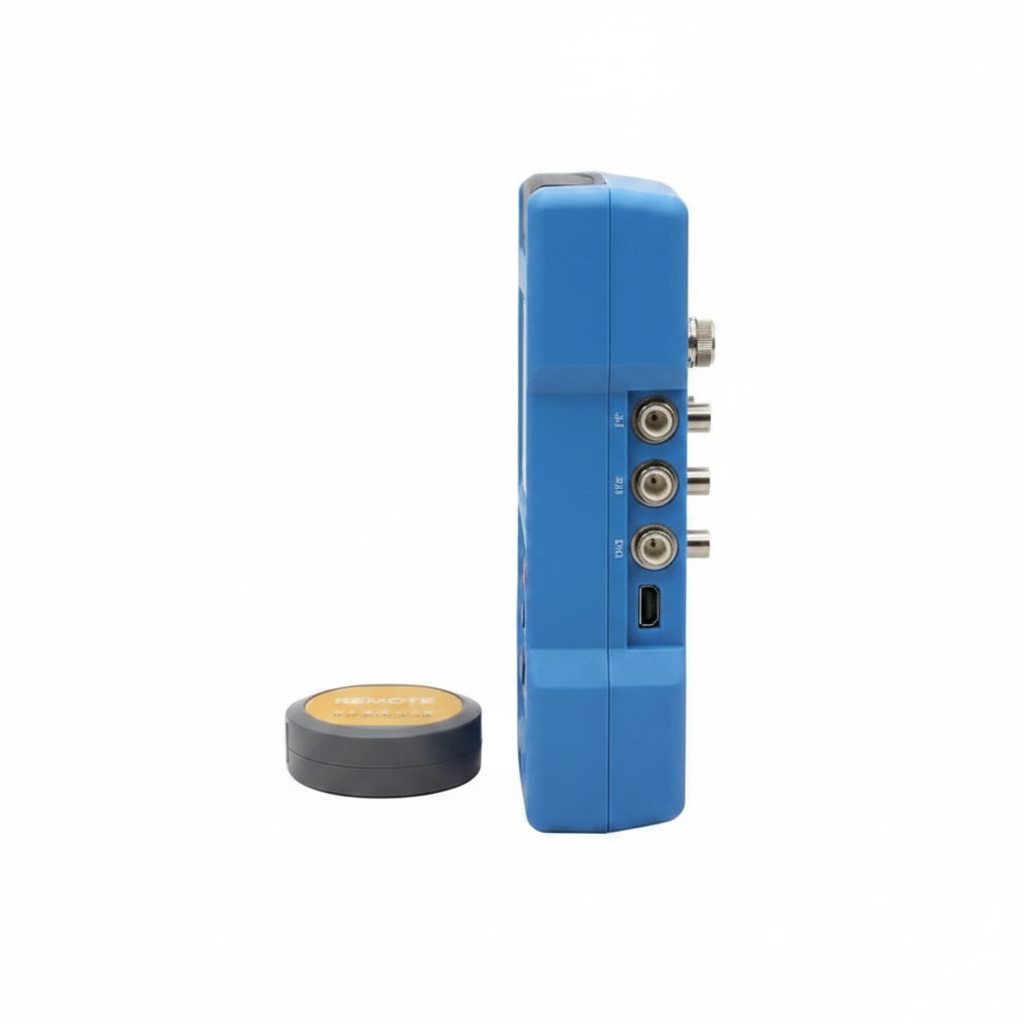

2. Yellow Round Remote Module — Detachable end-piece used on the far side of a LAN cable to test RJ45 continuity.

3. FC/UPC Adapter Ring — Metallic screw-on adapter for FC fiber connectors.

4. Power Adapter & USB Cable — For charging the internal lithium battery.

5. Black Carrying Pouch — Zippered protective travel case.

6. User Manual — Quick start instruction guide.
