Eloik Handheld Optical Power Meter (OPM)

Product Overview

Designed for high accuracy, durability, and ease of use, the Eloik Handheld Optical Power Meter is a professional-grade testing instrument for fiber optic network installation, maintenance, and signal attenuation testing. Featuring a high-precision InGaAs detector, backlit LCD screen, and rugged protective casing, it delivers rapid and stable power loss measurements across a wide range of standard optical wavelengths.

Key Features

• High Measurement Accuracy: Equipped with an advanced InGaAs detector for precise, low-error optical signal power testing.

• Multi-Wavelength Support: Rapidly toggles between standard calibrated wavelengths including 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm.

• Relative Power Reference (REF): One-touch reference setting allows quick relative power loss measurements ($\text{dB}$) against stored baseline values.

• Multi-Unit Reading Display: Displays measurements in both linear ($\text{mW}/\mu \text{W}$) and non-linear ($\text{dBm}$) formats with high resolution.

• Rugged Rubber Protective Boot: Blue rubberized shock-absorbing casing protects the meter against drops and impacts during field operation.

• Backlit Digital LCD: Clear backlit display screen ensures comfortable readings in bright daylight or low-light server room environments.

• Auto Power-Off Function: Smart power management automatically shuts down the device after inactivity to prolong battery life.

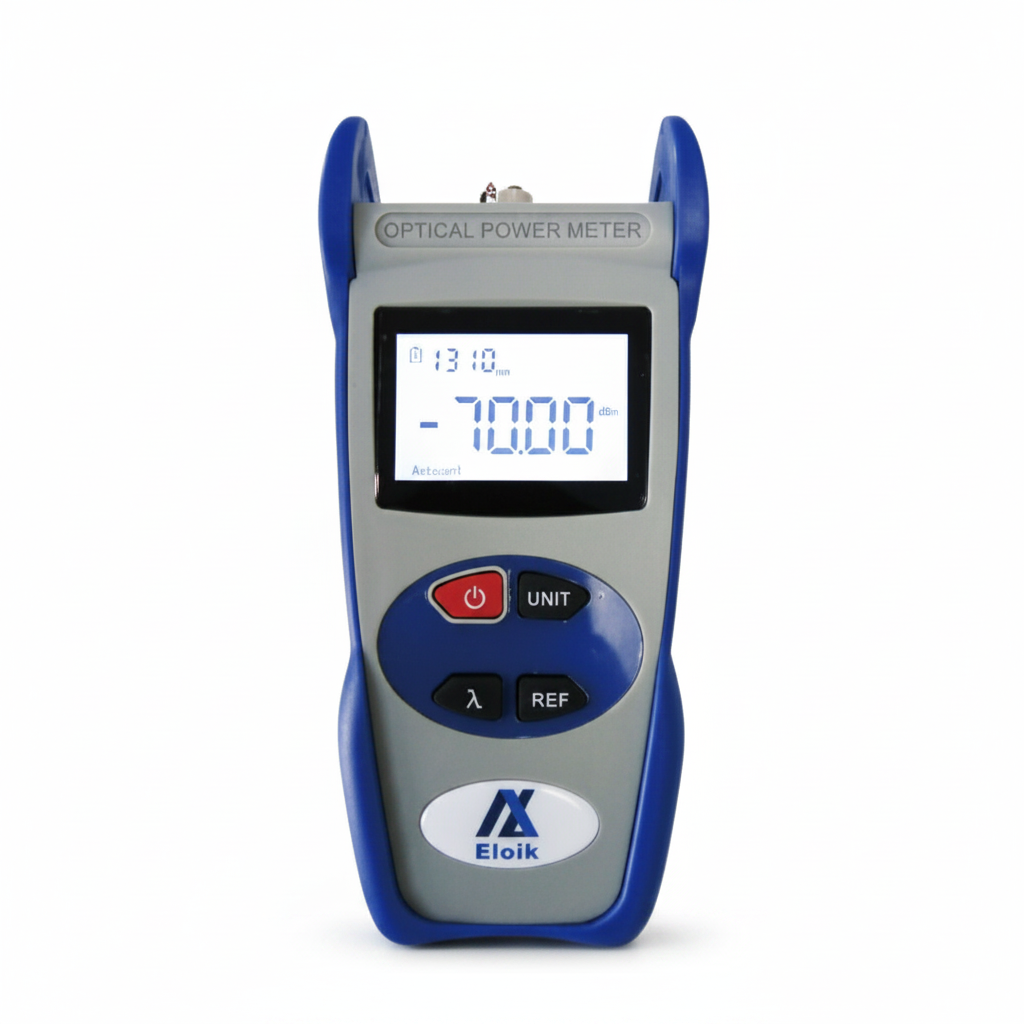

Button Control Breakdown

• Power Button (U˙): Power ON/OFF (Long press) / Backlight toggle (Short press).

• $\mathbf{UNIT}$: Switches display units between $\text{dBm}$, $\text{dB}$, and $\text{mW}$.

• Wavelength ($\lambda$): Cycles through calibrated wavelengths ($850\text{nm}-1625\text{nm}$).

• Reference ($\mathbf{REF}$): Sets current power measurement as the reference benchmark for relative loss calculations.

Specifications

• Brand: Eloik

• Detector Type: InGaAs

• Wavelength Range: $800\text{nm}–1700\text{nm}$

• Measurement Range: $-70\text{dBm to }+6\text{dBm}$ (Standard) / $-50\text{dBm to }+26\text{dBm}$ (CATV Power)

• Optical Connector: Universal $2.5\text{mm}$ interface (FC / SC / ST compatible)

• Power Supply: Standard AA Alkaline batteries

• Package Includes: $1\times$ Eloik Optical Power Meter, $1\times$ Soft Carrying Case, $1\times$ User Manual.
