Fiber Stripper

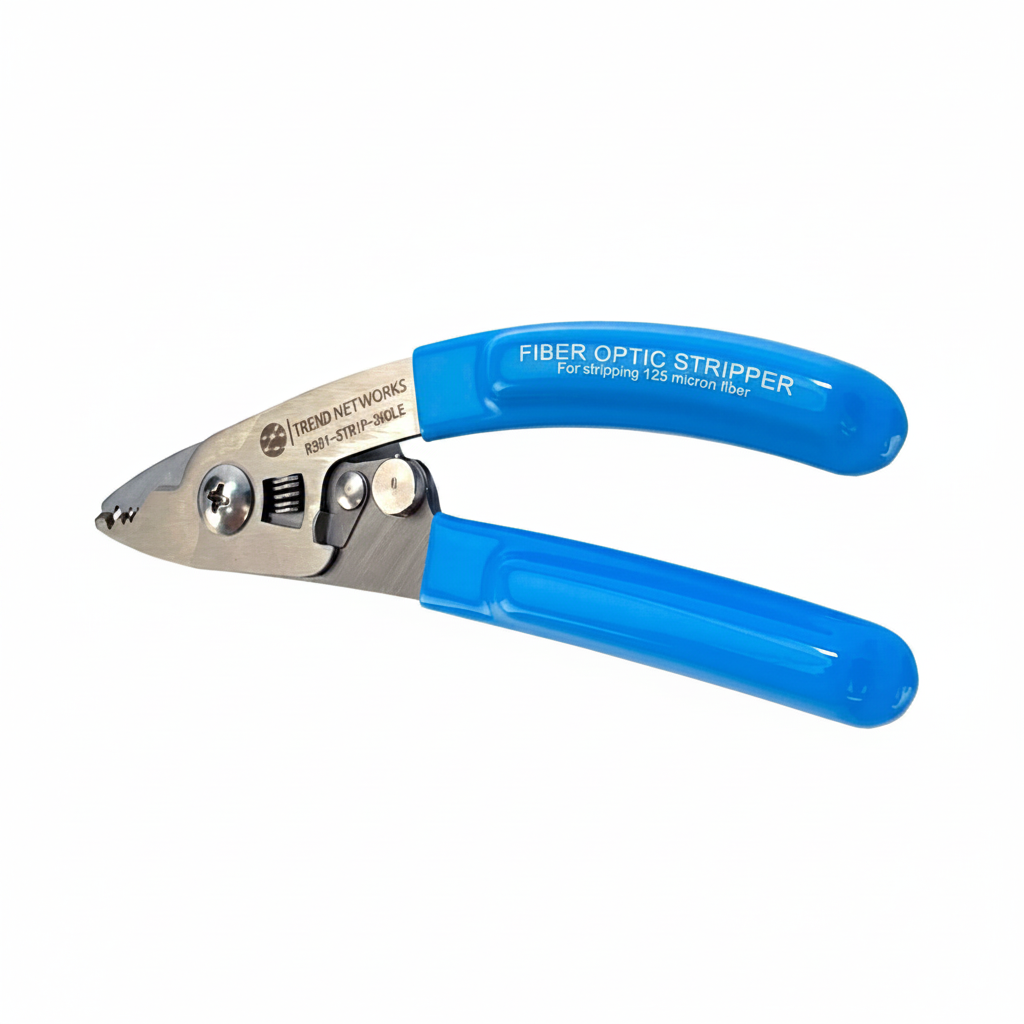

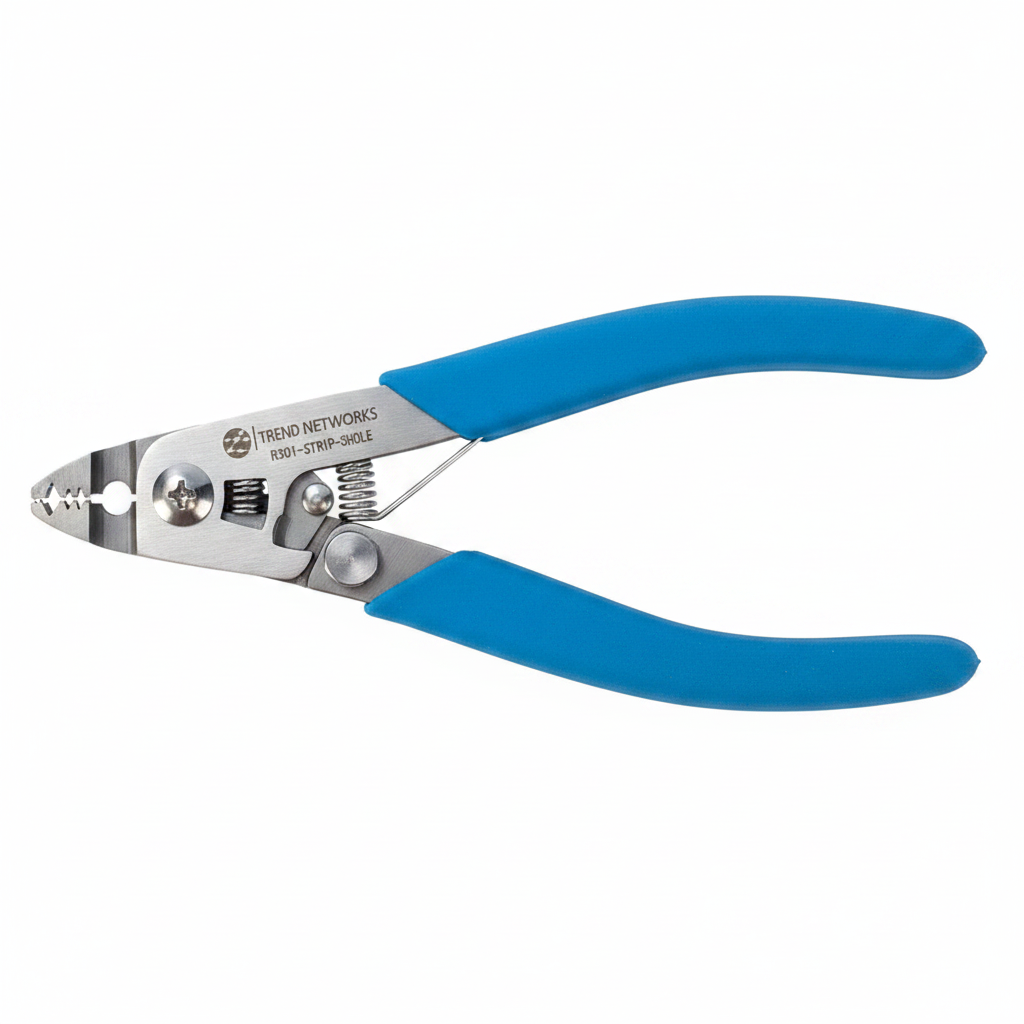

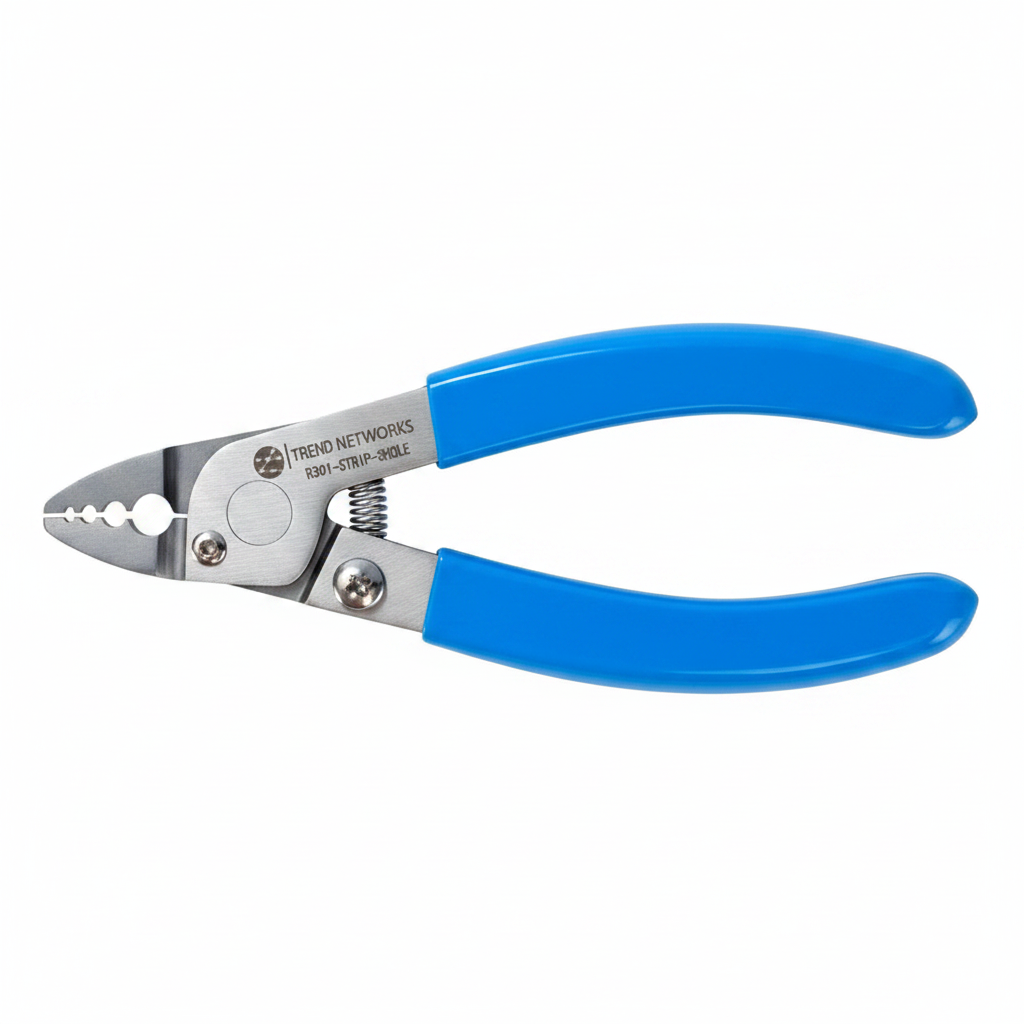

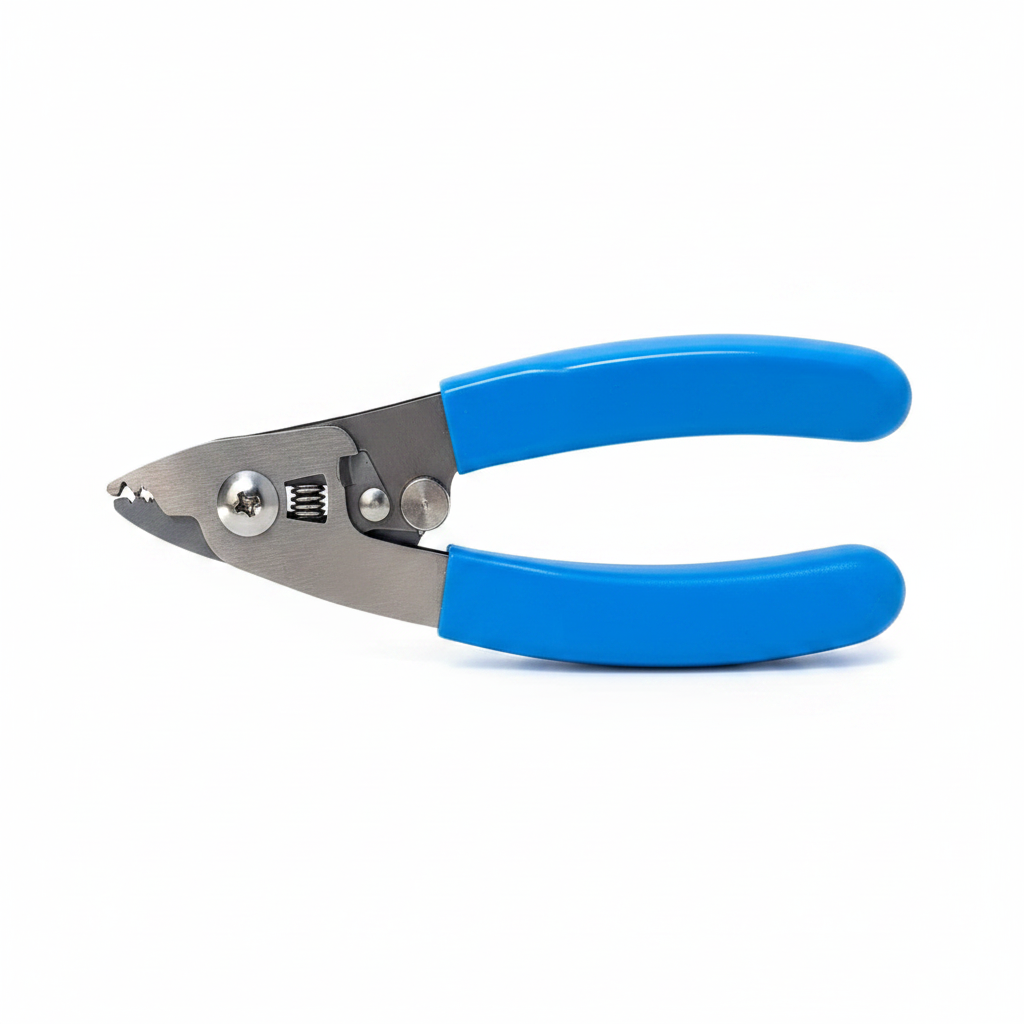

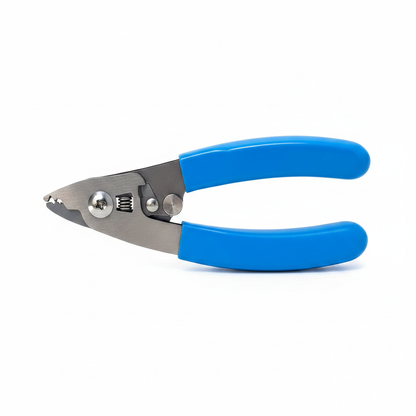

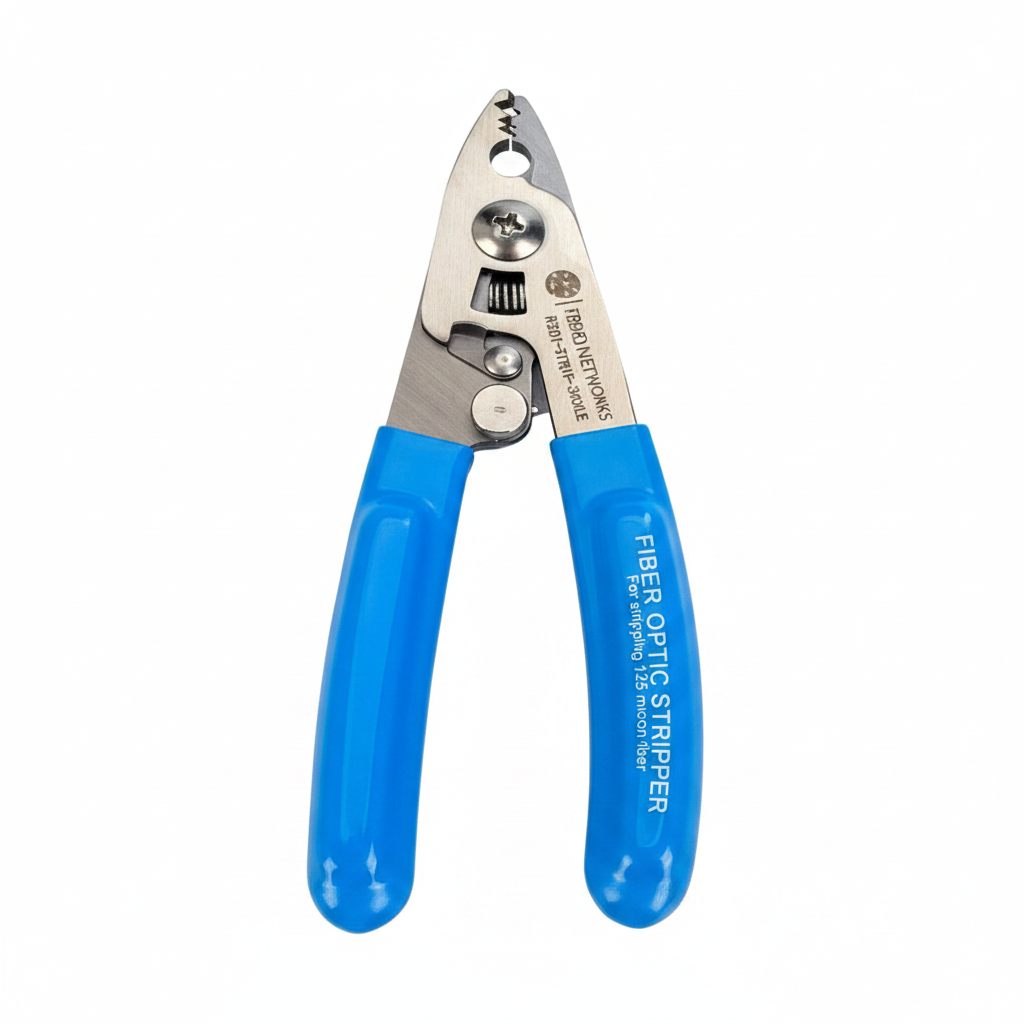

This is a 3-Hole Fiber Optic Stripper by TREND NETWORKS (Model: R301-STRIP-3HOLE).

It is a precision hand tool designed specifically for network technicians and telecommunication installers to strip protective outer coatings from fiber optic cables without scratching or damaging the bare 125-micron glass fiber inside.

Key Product Details

• Brand: TREND NETWORKS

• Model Number: R301-STRIP-3HOLE

• Primary Application: Telecom, FTTH (Fiber to the Home), and network cable termination/splicing.

How the 3-Hole System Works

1. Large Hole: Strips the 1.6 mm to 3.0 mm outer fiber jacket down to the internal buffer coating.

2. Medium Hole: Strips the 600 to 900 micron buffer tube down to the 250 micron coating.

3. Small Hole: Strips the 250 micron acrylate coating down to the 125 micron bare glass fiber.

Key Features

• Factory Pre-Set Calibration: Requires no field adjustment; engineered to prevent nicks, scratches, or fractures on the optical glass fiber.

• Ergonomic Handles: Soft, dip-coated blue grips ensure comfortable, non-slip operation during repetitive splicing work.

• Safety Lock & Spring Return: Includes a latch to safely keep the blades closed when stored and a spring mechanism for smooth, quick repetitive stripping.
